ECI Pipeline (SENTINEL)

Role: Built the SENTINEL console, the FastAPI service and the evaluation on a student team
When: Jan 2026 - Aug 2026
Status: Delivered, live console online
Context: Team capstone with TransUnion
Stack: Python
FastAPI
PostgreSQL
pgvector
NetworkX
Groq
Next.js
React

The problem

The Android security landscape changes every day: new CVEs, SDK and API changes, Play policy updates. A fraud or risk team can't watch all of it by hand, and an LLM summarizing raw feeds hallucinates and leaves no evidence trail. TransUnion wanted a pipeline that notices what changed and explains why it matters, with sources attached.

This was a team capstone. My part was the SENTINEL console, the FastAPI service behind it, and the evaluation and its fixes.

How it works

1
Scout
Takes a SHA-256 snapshot of each source and stops early when nothing changed, so an unchanged page never costs an LLM call.
2
Delta detection
Line-diffs the new snapshot against the last one and drops changes below a noise threshold, so a moved banner doesn't trigger anything.
3
Chunk and embed
Splits the changed content and embeds it into pgvector for retrieval.
4
Graph builder
Extracts CVEs, components, policy clauses and API levels into a NetworkX knowledge graph for multi-hop questions.
5
Sentinel triage
An LLM on Groq scores each change for relevance and risk, then marks it triaged or escalated.
6
Coordinator
For escalated items only, combines vector and graph retrieval into an action ticket with an owner, a risk level, next steps and citations.
7

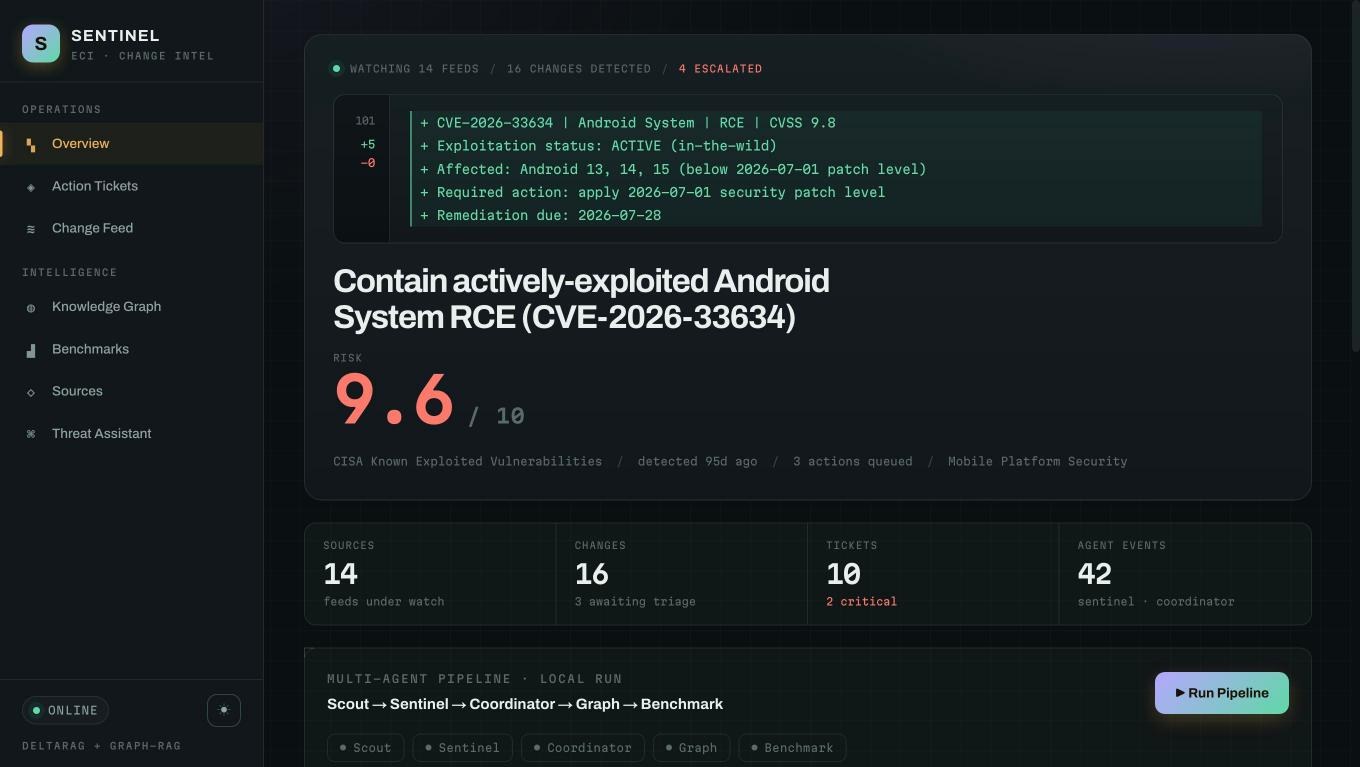

SENTINEL console
A Next.js console over the FastAPI service, which can also run from an offline dataset with no database at all.

Decisions and tradeoffs

Hash and threshold before any LLM call. Most polls find nothing new. Checking a hash and a diff ratio first means noise never reaches the model and there are no wasted calls.
Retrieve over the delta, not the whole corpus. DeltaRAG searches what changed, which keeps old, unchanged text from crowding out the new evidence.
One data contract, two sources. The console reads either the live API or an offline dataset through the same interface, so the demo runs with no database and production needs no code change.
pgvector instead of a local vector store, so each run is stateless. Because Vercel's serverless functions can't run long Python jobs, the database also acts as the message queue between stages.
Publish the null result. The benchmark showed the extra layers didn't beat plain RAG, so the analytics page says that, with the y-axis running 0 to 100.

What broke

The analytics chart's y-axis started at 60, which made a spread of about one point look like a real difference. It now starts at 0.
False-alarm queries scored a hard 0.0 on a metric that isn't defined for them, which dragged down the per-type table. They're now reported separately.
The original README claimed AWS Lambda, Prometheus and IAM that the code never used. I removed those claims.
Settings crashed at import when the database URL was empty. It now falls back to SQLite.

Results

Result	What it measures	Source
91.6%	Precision at rank 1 on 95 scored benchmark queries, identical for plain RAG, DeltaRAG and the full system	data/ablation_results.json, 110 gold queries, top-k 5
94.5%	nDCG@5 on the same queries	same file
within 1.1 points	Spread across every retrieval variant, a null result for the DeltaRAG and graph layers	README and the live analytics page
0%	False-alarm rejection on 15 control queries, because retrieval never abstains. This is the open gap.	same benchmark
14	Feeds in the live console's source registry, with 381 snapshots and 10 action tickets	live /api/stats

91.6%
Precision at rank 1 on 95 scored benchmark queries, identical for plain RAG, DeltaRAG and the full system
data/ablation_results.json, 110 gold queries, top-k 5
94.5%
nDCG@5 on the same queries
same file
within 1.1 points
Spread across every retrieval variant, a null result for the DeltaRAG and graph layers
README and the live analytics page
0%
False-alarm rejection on 15 control queries, because retrieval never abstains. This is the open gap.
same benchmark
14
Feeds in the live console's source registry, with 381 snapshots and 10 action tickets
live /api/stats

Retrieval quality is high, and it's the same with or without the DeltaRAG and graph layers, so I don't claim those layers helped. The 25 multi-hop queries scored 100% in every variant, which means the benchmark doesn't separate them yet.

Limits and what's next

The benchmark doesn't discriminate between variants, retrieval never abstains, and the live change feed is a curated snapshot. Next is a harder benchmark built so the variants can actually win or lose, and an abstain path so the system can say "nothing relevant changed".
